PDLC SWITCHABLE SMART FILMS
The PDLC Smart Film displays see-through and matte effects when powered on/off. Not only does this product protect your privacy, the electronically controlled conversion function is also highly cost-effective. With the advantages of heat insulation and UV insulation, coupled with low power consumption, the PDLC Smart Film can be used effectively in the home, office spaces, clinics, building windows and car windows as well as hi-tech plants.
ARCHITECTURE USE
BenQ materials’ PDLC Smart Optical Film can effectively protect your privacy by displaying see-through and matte effects when powered on/off, enhance energy saving with heat insulation and ultraviolet light isolation, allows better in-car interior space owing to high see-through from car sunroof as well as privacy, and capture high visibility in the global EV trend due to its adaptation of dynamic technology advances. With capabilities of allowing EV to realize aesthetics in future sense and excellent weather resistance under compliance of manufacturing safety specifications.
AUTOMOTIVE VEHICLE USE
As EV industry evolves rapidly, vehicle interior space applications increasingly focus on the development of multiple functions, particularly the energy consumption enhancement. BenQ Materials, in addition to in-door and out-door building applications, expands to vehicle specific applications and successfully develops vehicle specific PDLC that achieves 70% see-through effect when power-on and 95% matte privacy effect when power-off, demonstrating 99% anti-UV and 90% anti-infrared capabilities that allow users to enjoy pleasant and safe driving environment as well as lower energy consumption. BenQ Materials PDLC Smart Optical Films becomes one of the flagship products that attract car manufacturers at home and abroad to follow.
FEATURES
Sturcture:
The current product structure offers "adhesive" and "laminated" film. The adhesive film is suitable for renovating existing interior space on glass or acrylic depending on needs, while the laminated film is suitable for new space as it combines the PDLC Smart Film with glass through lamination, providing better protection than the adhesive film. These two products aim to provide diverse applications in the home, mobile, as well as commercial spaces, fulfilling the needs to switch between privacy and space, providing flexible scenarios for spatial application.
Sturcture:
The adhesive film is suitable for renovating existing interior space on glass or acrylic depending on needs, while the laminated film is suitable for new space as it is laminated on glass, providing better protection than the adhesive film.

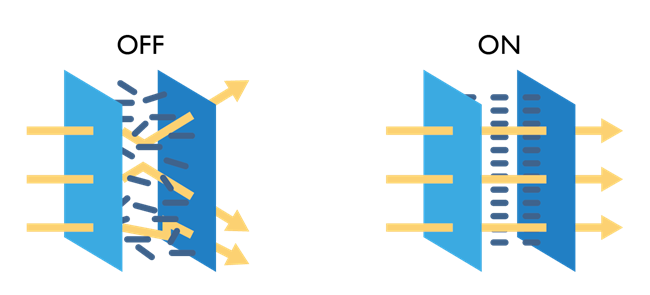

When the power is switched on, the liquid crystal polymers are neatly arranged, allowing the light to penetrate evenly, showing clear-glass-transparency. When the power is switched off, the liquid crystal polymers are irregularly arranged with light scattered in all directions, showing frosted-glass-matte effect.
When the power is switched on, the liquid crystal polymers are neatly arranged, allowing the light to penetrate evenly, showing clear-glass-transparency. When the power is switched off, the liquid crystal polymers are irregularly arranged with light scattered in all directions, showing frosted-glass-matte effect.
Green PDLC
BenQ Materials PDLC Smart Film possess characteristics including second-to-none translucency and lower energy consumption. To fulfill our corporate core strategy - "achieving the true beauty of technological life", while developing material science, BenQ Materials is dedicated to making efforts towards the environment, hence the development of "the world's first green building material - PDLC Smart Film".

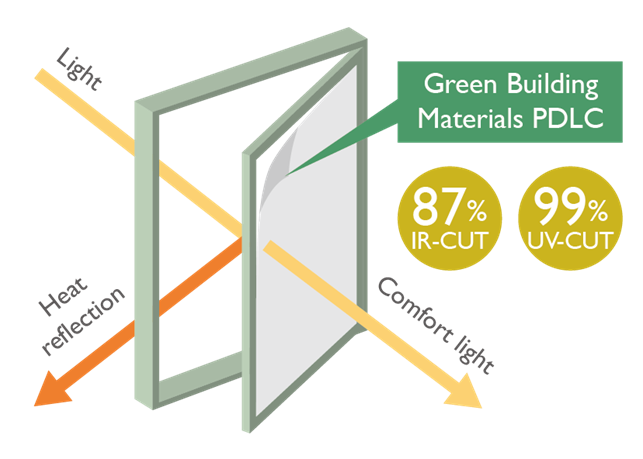

Thanks to its special manufacturing process verified by the green materials verification laboratory, the PDLC Smart Film can block 99% of UV and 87% heat, effectively reducing the energy consumption of home appliances. Our product is designed for the application of converting space transparency and privacy, further achieving the twin benefits of energy saving and carbon reduction.
As BenQ Materials PDLC Smart Film consumes very little energy and effectively blocks heat, adequate lighting can penetrate the room, reducing the consumption of air conditioning and carbon, making it the best option for sustainability.
Certification
At BenQ Materials, our internal verification and optical-grade laboratories offer the basic standards for product requirements by material science experts. In addition, to ensure the reliability of the tests, important data will be sent to a third part impartial organizations for double verification, ensuring the consistency of the product and quality.
As the PDLC Smart Film is made through a complex process, we must send our PDLC products to a testing & verification platform endorsed by national standards agencies to carry out high-standard experiments and tests. Furthermore, we have also invested in a laboratory designed to simulate the actual use of the product, which requires long-term testing & verification. This approach helps us ensure that we bring energy-saving benefits to our customers. Meanwhile, the PDLC products have passed the national criteria for green building materials and have obtained the environmental label for green building materials.
According to the data, the PDLC Smart Film can effectively block UV and heat in building spaces, making it a new option for all types of spaces and building materials. Moreover, as we insist on our products being friendly to the human body, during the green process of product manufacturing, we strictly adhere to the "3 no's", namely "no formaldehyde", "no heavy metals", and "no radioactive substances". Green building products are becoming the best new option for saving energy as well as reducing carbon.
